Comparing Hydraulic Pumps: Gear Vs. Vane

Welcome to our in-depth analysis comparing two of the most widely used hydraulic pumps - gear and vane. If you're seeking to elevate your understanding of hydraulic systems, this article is a must-read. We delve into the key differences, advantages, and disadvantages of both pumps, equipping you with the knowledge to make informed decisions for your specific applications. Whether you're a seasoned professional or new to the world of hydraulics, join us on this journey as we uncover the strengths and weaknesses of gear and vane pumps, and discover which one may be the perfect fit for your needs.

Comparing Hydraulic Pumps: Gear vs. Vane

Understanding the Basics of Hydraulic Pump Technology

Hydraulic pumps are essential components in various industries, enabling the transfer of energy in hydraulic systems. They play a crucial role in powering heavy machinery and providing force to move or lift objects efficiently. Among the different types of hydraulic pumps available, gear pumps and vane pumps are widely used. In this article, we will delve into the characteristics, advantages, and limitations of gear pumps and vane pumps, allowing you to make an informed decision when choosing the best pump for your specific applications.

Gear Pumps - Simple, Reliable, and Efficient

Gear pumps are one of the oldest and most common types of hydraulic pumps. They are known for their simplicity of design, which includes a pair of interlocking gears that rotate against each other within a tightly sealed housing. As the gears rotate, fluid is displaced, generating flow and pressure. This design provides consistent output flow, making gear pumps suitable for steady-state applications.

One of the main advantages of gear pumps is their reliability. The internal gear meshing reduces the risk of cavitation, making them less prone to wear and tear. Additionally, the absence of internal metal-to-metal contact minimizes friction, leading to a longer lifespan and enhanced efficiency. However, gear pumps have limited pressure capabilities and may not be suitable for high-pressure applications.

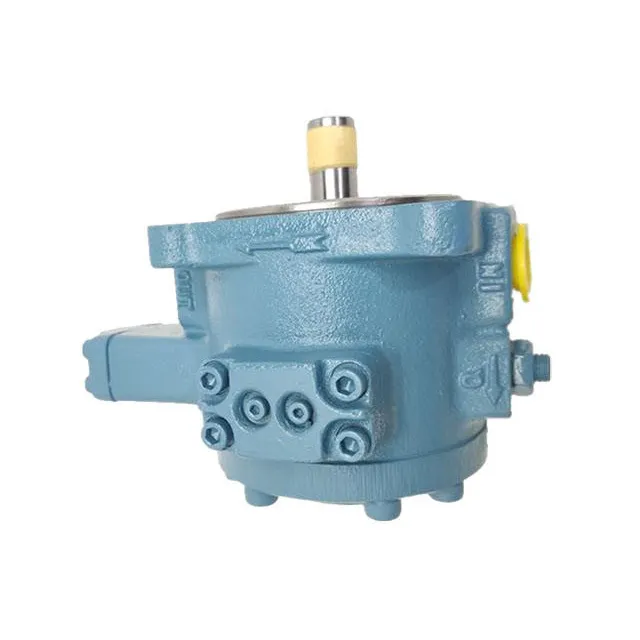

Vane Pumps - Versatile and Capable of High-Pressure Handling

Vane pumps, on the other hand, offer several distinct advantages over gear pumps. They consist of a rotor with vanes and a cam ring that provides the housing for the vanes. The rotor's offset position within the housing generates a tightening space, creating a vacuum that draws fluid in and then allows it to flow out under pressure.

Vane pumps are highly versatile and can handle both low and high-pressure applications. They provide smooth flow and excellent performance even at higher pressures, making them suitable for a wide range of industries. Moreover, vane pumps operate quietly and can handle thicker and more viscous fluids, which may be advantageous in certain applications.

Gear vs. Vane: A Comparative Analysis

When comparing gear pumps and vane pumps, it is crucial to consider their specific features and performance characteristics. Gear pumps have a compact design, making them more suitable for applications with limited space. They are generally less expensive than vane pumps and offer good performance in low-pressure systems. However, their efficiency tends to decrease at higher pressures, making them less efficient for certain demanding applications.

On the other hand, vane pumps excel in high-pressure applications, providing reliable and efficient performance. They offer better efficiency, especially at higher pressures, and can handle a broader range of fluid viscosities. However, vane pumps are slightly larger and require more maintenance due to the wearing of the vanes over time.

Selecting the Right Pump for Your Application

Ultimately, choosing between gear pumps and vane pumps depends on the specific requirements of your application. Consider factors such as system pressure, flow rate, fluid viscosity, noise considerations, space limitations, and cost implications. If you need a cost-effective solution for low-pressure applications, gear pumps may be the best choice. However, if your application involves higher pressures, a wider range of fluid viscosities, or quieter operation, vane pumps may provide the optimal solution.

In conclusion, both gear pumps and vane pumps have their advantages and limitations in hydraulic systems. Understanding the differences and evaluating the specific requirements of your application will guide you in selecting the most suitable pump. By considering factors such as pressure handling capabilities, efficiency, size, and maintenance requirements, you can ensure that your hydraulic system operates with optimal performance and reliability.

Conclusion

After analyzing the differences between gear and vane hydraulic pumps, it is clear that each type has its own advantages and limitations. Gear pumps offer simplicity, reliability, and cost-effectiveness, making them suitable for applications where high-pressure and low-to-medium flow rates are required. On the other hand, vane pumps offer greater efficiency, higher flow rates, and quieter operation, making them suitable for applications that demand high-performance and precision. In conclusion, the choice between gear and vane hydraulic pumps ultimately depends on the specific requirements of the application, as each type has its own unique set of features and benefits. By carefully evaluating the factors such as pressure, flow rate, reliability, and noise levels, engineers and manufacturers can make an informed decision to select the most suitable pump for their hydraulic systems. Ultimately, with the continuous advancement in technology and the ever-growing demands of various industries, further research and development are essential to improve both gear and vane hydraulic pumps, pushing the boundaries of their capabilities and expanding their applications.
