OEM Atos Vane Pump
Product details of the atos vane pump
Quick Detail
Only the finest raw materials will be applied in the production of atos vane pump. It satisfies all of the International quality standards, which are very strict. atos vane pump in the local enjoys a certain reputation and visibility.
Product Introduction
pays great attention to the details of atos vane pump. The following will show you one by one.

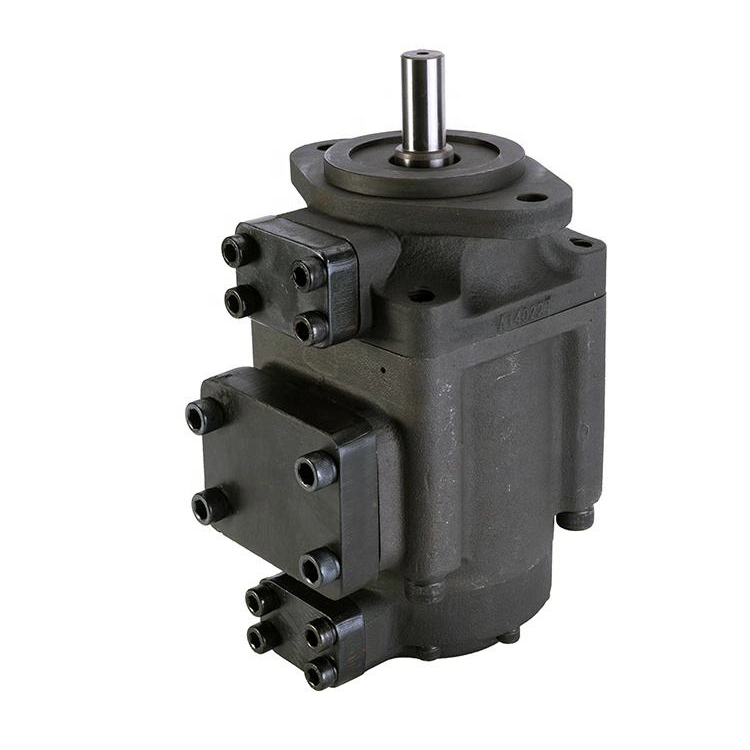

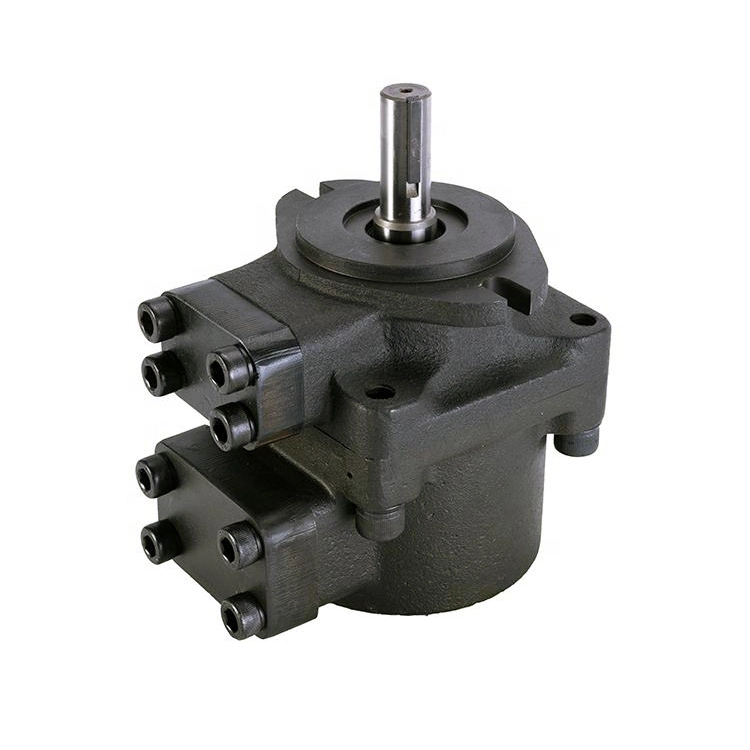

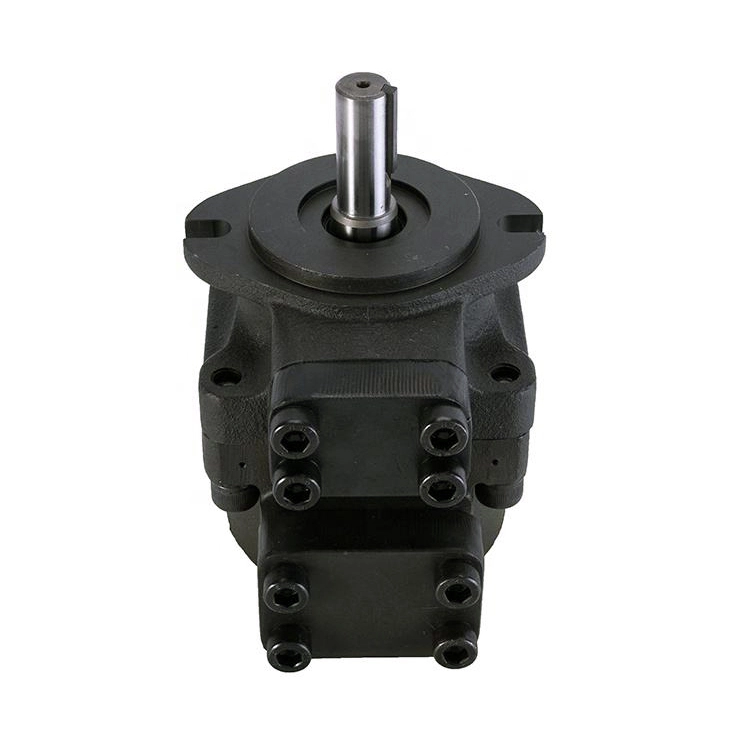

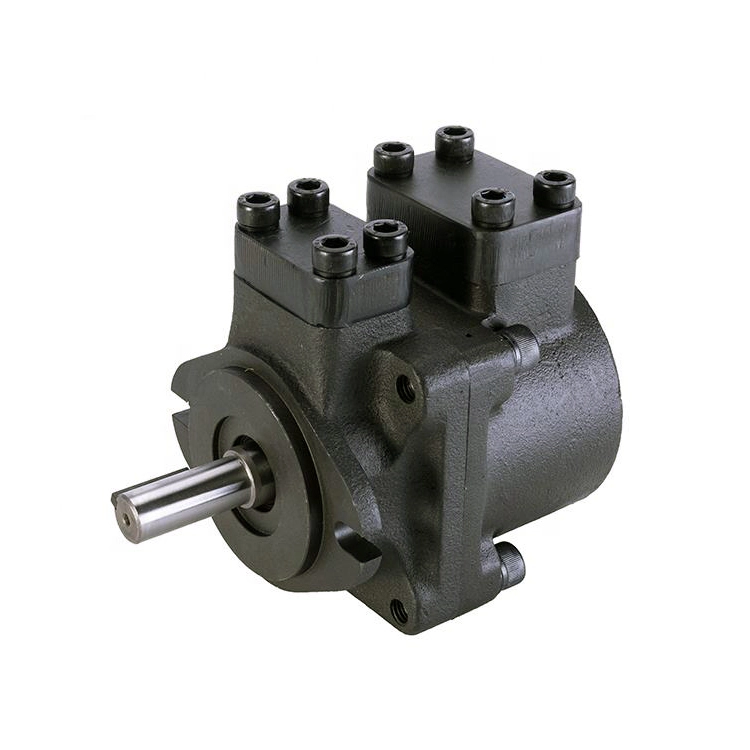

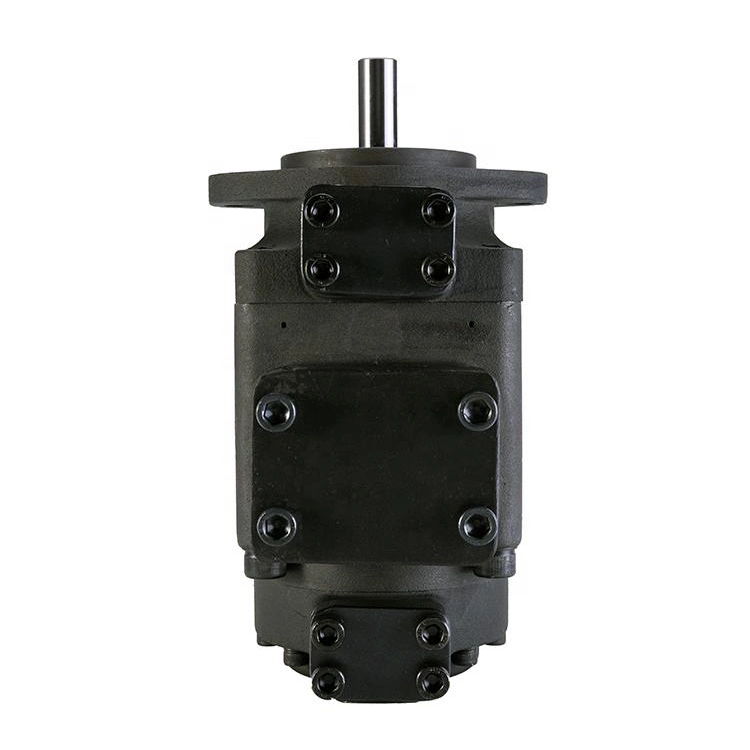

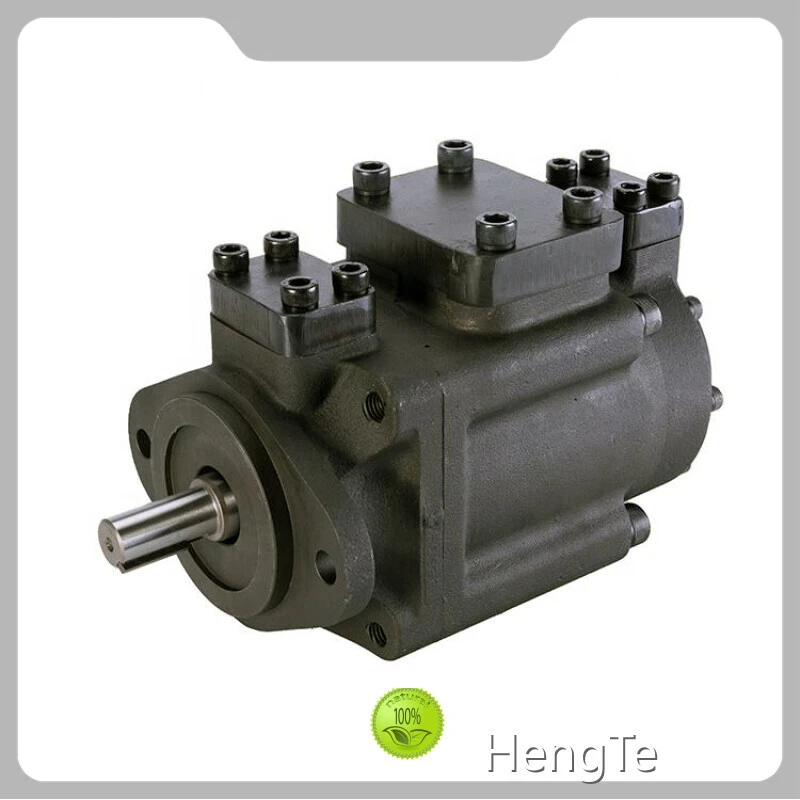

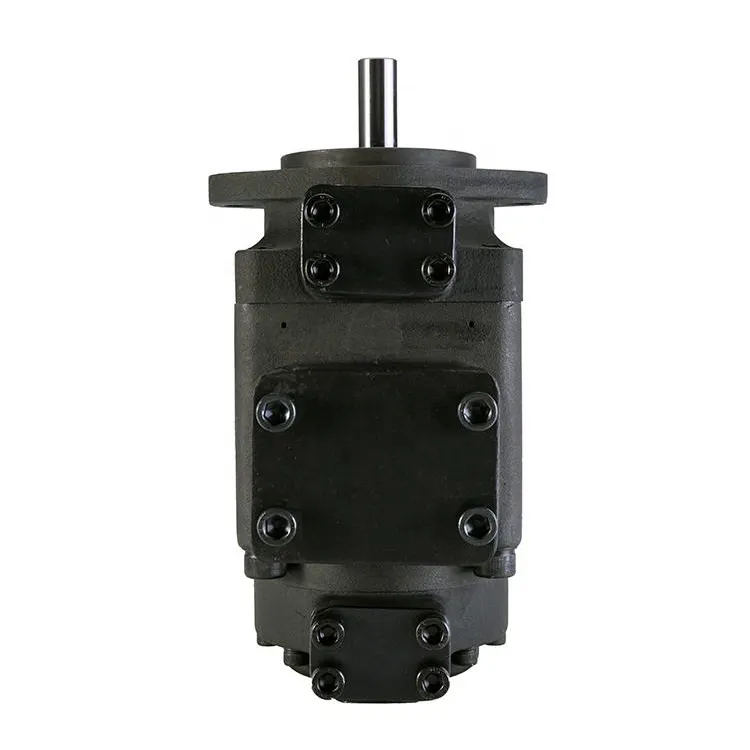

PRODUCT DISPLAY
EIGHT SERIES
The PFE series * * * vane pump has a total of 75 specifications in eight series, including single pump (PFE-31/41/51/32/42/52) and dual pump (PFED-4131/5141).
Its displacement range is 16.5~150ml/r, rated pressure is 21~30MPa, and speed range is 600~2800r/min. (Based on this, Yuci Hydraulic Co., Ltd. has developed two series of single pumps, PFE-21/61, to expand the displacement range to 5~250 ml/r).
The pump is designed with an eccentric pin blade structure and features high pressure, large flow rate, small volume, stable operation, low noise, long service life, and other advantages. Its main technical indicators reach the level of similar international products.
This series of pumps is a plug-in structure. The design of the movement further reduces pressure, flow pulsation, and noise. The front and rear side panels have the same structure, symmetrical grooves, and both use hydraulic balance, achieving consistent deformation and compensation, thus achieving better volumetric efficiency. The reasonable design of the oil supply system at the root of the blade and pin ensures good contact between the blade and stator, and minimizes the flow loss*** The design, high precision processing, and reasonable selection of materials make the pump have excellent service life indicators.
WORKING CHARACTERISTICS
PFE series vane pumps have a variety of * * *, excellent and reliable performance, simple and reasonable structure, convenient installation and maintenance (installation and connection comply with ISO/SAE standards), and can be * * * applied in fields such as machine tools, pressure die-casting machinery, engineering machinery, metallurgy, mining, light industry, chemical machinery, agricultural machinery, and various hydraulic systems.
1. Structure code: PFE single pump series
2. Series numbers: 21, 31, 41, 51, 61
3. Geometric displacement (ml/r)
4. Shaft extension type: 1-cylindrical shaft extension (standard type) 2-cylindrical shaft extension (ISO/DIS3019)
3-cylindrical shaft extension (high torque type) 5-spline shaft extension
5. Rotation direction viewed from the shaft end: D: clockwise needle S: counterclockwise
6. Oil port position: see the schematic diagram of oil port position [there are four sets of position relationships between the inlet and outlet: T (standard), V, U, and W]
7. Applicable fluid mark: No mark: petroleum based water monoethylene glycol/PF: phosphate ester.
PFE-41029 PFE-41037 PFE-41045 PFE-41056 PFE-41070 PFE-41085
PRODUCT PARAMETERS
| Condition | New |
| Parts number | PFE PFED Single Double |
| Place of Origin | Guangdong, China |
| Original | ATOS |
| Application | For Industry Machinery |
| Quality | High Guarantee |
| Package | Standard Export Package |
SINGLE PUMP MODEL
PFE-21005PFE-21006PFE-21008PFE-21010PFE-21012PFE-21016PFE-31016PFE-31022PFE-31028PFE-31036
PFE-31044PFE-41029PFE-41037PFE-41045PFE-41056PFE-41070PFE-41085PFE-51090PFE-51110PFE-51129
PFE-51150
PFE-32022PFE-32028PFE-32036PFE-42045PFE-42056PFE-42070PFE-52090PFE-52110PFE-52120
DUAL PUMP MODEL
PFED-3121016/005PFED-3121016/006PFED-3121016/008PFED-3121016/010PFED-3121016/012PFED-3121022/005PFED-3121022/006PFED-3121022/008PFED-3121022/010PFED-3121022/012PFED-3121022//016PFED-3121028/005PFED-3121028/006PFED-3121028/008PFED-3121028/010PFED-3121028/012
PFED-3121028/016PFED-3121036/005PFED-3121036/006PFED-3121036/008PFED-3121036/010PFED-3121036/012PFED-3121036/016PFED-3121044/005PFED-3121044/006PFED-3121044/008PFED-3121044/010PFED-3121044/012PFED-3121044/016
PFED-4121029/005PFED-4121029/006PFED-4121029/008
PFED-4121029/010
PFED-4121029/012PFED-4121029/016PFED-4121037/005PFED-4121037/006PFED-4121037/008PFED-4121037/010PFED-4121037/012PFED-4121037/016PFED-4121045/005PFED-4121045/006PFED-4121045/008PFED-4121045/010PFED-4121045/012PFED-4121045/016
PFED-3121036/005
PFED-3121036/006PFED-3121036/008PFED-3121036/010PFED-3121036/012PFED-3121036/016PFED-3121044/005PFED-3121044/006PFED-3121044/008PFED-3121044/010PFED-3121044/012PFED-3121044/016PFED-4121085/005PFED-4121085/006PFED-4121085/008PFED-4121085/010PFED-4121085/012
PFED-4121045/016PFED-3121036/005PFED-3121036/006PFED-3121036/008PFED-3121036/010PFED-3121036/012PFED-3121036/016PFED-3121044/005PFED-3121044/006PFED-3121044/008PFED-3121044/010PFED-3121044/012PFED-3121044/016PFED-4121085/005PFED-4121085/006PFED-4121085/008
PFED-4121085/010PFED-4121085/012PFED-4121085/016PFED-4131029/016PFED-4131029/022PFED-4131029/028PFED-4131037/010PFED-4131037/016PFED-4131037/022PFED-4131037/028PFED-4131037/036PFED-4131045/016PFED-4131045/022PFED-4131045/028PFED-4131045/036PFED-4131045/044
PFED-4131056/010PFED-4131056/016PFED-4131056/022PFED-4131056/028PFED-4131056/036PFED-4131056/044PFED-4131070/016PFED-4131070/022PFED-4131070/028PFED-4131070/036PFED-4131070/044PFED-4131085/016PFED-4131085/022PFED-4131085/028PFED-4131085/036PFED-4131085/044
PFED-5131090/016PFED-5131090/022PFED-5131090/028PFED-5131090/036PFED-5131090/044PFED-5131110/016PFED-5131110/022PFED-5131110/028PFED-5131110/036PFED-5131110/044PFED-5131129/016PFED-5131129/022PFED-5131129/028PFED-5131129/036
PFED-5131129/044PFED-5131150/016
PFED-5131150/022PFED-5131150/028PFED-5131150/036PFED-5131150/044PFED-5141090/029PFED-5141090/037PFED-5141090/045
PFED-5141090/056PFED-5141090/070PFED-5141090/085PFED-5141110/029PFED-5141110/037PFED-5141110/045
PFED-5141110/056
PFED-5141110/070PFED-5141110/085PFED-5141129/029PFED-5141129/037PFED-5141129/045PFED-5141129/056
PFED-5141129/070
PFED-5141129/085PFED-5141150/029PFED-5141150/037PFED-5141150/045PFED-5141150/056PFED-5141150/070PFED-5141150/085
